Volvox Terranova

Volvox Terranova - trailing suction hopper dredger

General properties

IMO number:
9164110
245992000
Callsign:
PGBG
Vessel type:
TSHD
Flag:
NL
Built in:
1998

Physical properties

Length (OA):
164.1 m
Length (BP):
154 m
Width:
29.03 m
Depth:
12.8 m
Draft (loaded):
11.2 m
Deadweight:
30234 tons
Number of engines:
2
Engine specs:
Wärtsilä - - 4Str - 18 cyl - 38.00 x 47.50 - 600 rpm
Speed (loaded):
17.3 knts
Total power:
29563 kW
Hopper volume:
20016 m³
Dredging depth:
40.4 m
Dredging depth (extended):
101.5 m
Suction pipe diameter:
1.4 m
Number of dredging pipes:
1

Page review

Status:
Active

Last Updated

6 days 51 min ago

About this equipment



The delivery of a 1,700kW jet pump unit and the modification of the complete suction tube was completed on schedule. Furthermore, the underwater pump unit was redesigned to accommodate a new 6MW submersible pump unit, including an e-motor delivered by the customer and a new IHC high efficiency dredge pump with Curve technology.











Images

Volvox-Terranova-353823royalihcupgradesunderwaterpumpunittshdforvanoord_1-63505_1volvox_terranovaV.TER_.-1V.TER_.2terranova_taiwanmv_volvox_terranova_080910_001volvox_terranova_maasvlaktepenny27s_bay_1volvox_terranovaterranova_-_dubai_1tshd_Volvox_Terranova_1terranova_-_dubai_2volvox_terranovaterranova_-_dubai_3Volvox_terranova__op_de_Maasvlakte_tweeterranova_-_dubai_4volvox_terranova_2Volvox Terranova - Dubaivolvox_terranova_3Volvox Terranova - Dubaivolvox_terranova_4volvox_terranova_5volvox_terranova_ijmuidenvolvoxterranova_maasvlakte2volvox_terranovaVolvox-Terranova-328875VolvoxTerranova_402VolvoxTerranova_4154VolvoxTerranova_4167mv_volvox_terranova_080910_001

Videos

See video
launching
See video

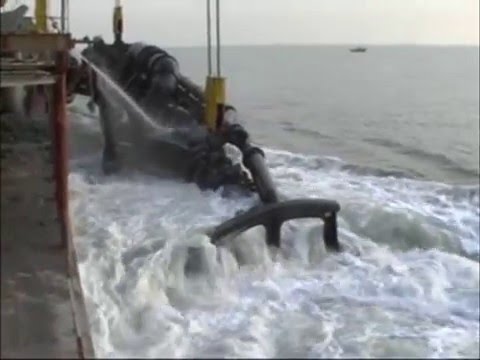

Trailing pipe overboard
See video

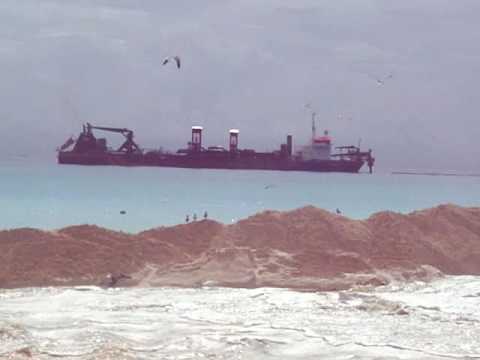

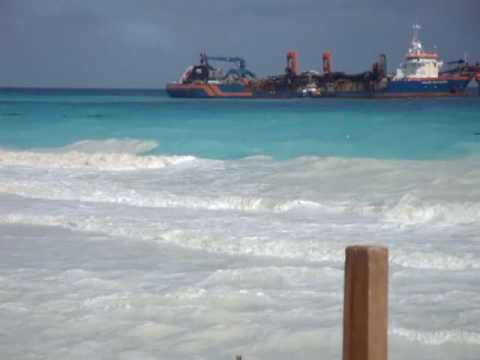

Cancun beach 2009
See video

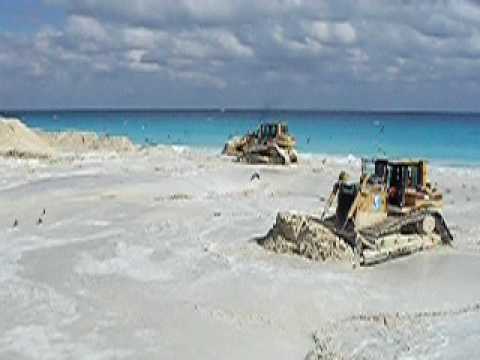

Cancun beach 2010 part 1
See video

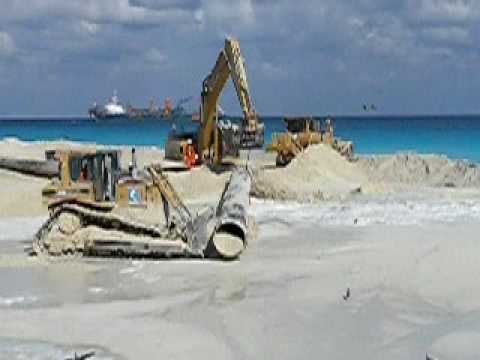

Cancun beach 2010 - part 2
See video
Dubai part 3
See video

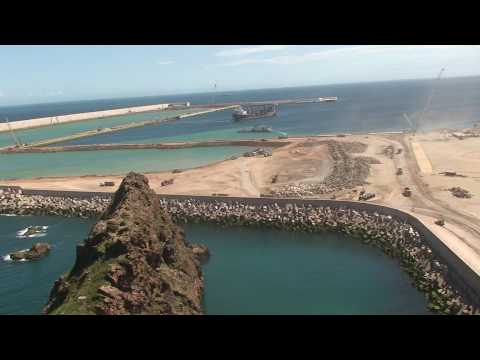

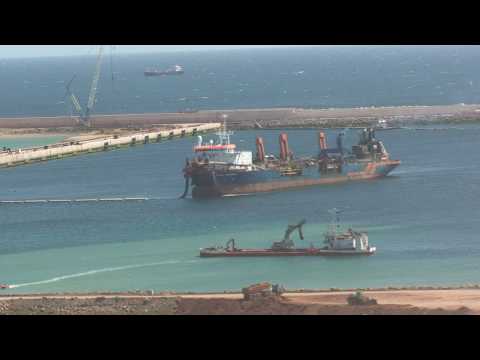

El Musel
See video
El Musel 19
See video
El Musel 21
See video
El Musel 39
See video
El Musel 40
See video
Mexico
