Congo River

Congo River - trailing suction hopper dredger

General properties

IMO number:
9574523
205588000
Callsign:
LXEP
Vessel type:
TSHD
Flag:
BE
Built in:
2011
Yard number:
720 - Co. 1263

Physical properties

Length (OA):
168 m
Length (BP):
153.3 m
Width:
38 m
Depth:
13.3 m
Draft (loaded):
12.15 m
Deadweight:
34674 tons
speed:
16.6 knts
Total power:
25400 kW
Hopper volume:
30000 m³
Dredging depth:
36 m
Dredging depth (extended):
56 m
Suction pipe diameter:
1.3 m

About this page

Status:
Active

Last Updated

2 years 20 weeks ago

About this equipment

Successful launch ceremony for CONGO RIVER

The launch ceremony for the 30,000m³ trailing suction hopper dredger CONGO RIVER took
place on 21 January 2011 at the IHC Merwede shipyard in Krimpen aan den IJssel,
The Netherlands. IHC Merwede is building the impressive ship for the DEME Group and the
CONGO RIVER is one of the largest ships in the fleet.

The contract for the design, construction and delivery of the vessel was signed between DEME
NV and IHC Dredgers BV in December 2008 and the keel was laid a year later on 15 December
2009. The vessel will be commissioned mid-2011. The name CONGO RIVER is in line with the
tradition of DEME NV to name some of its large ships after the world’s great rivers.

The CONGO RIVER is an innovative and versatile vessel, which has excellent manoeuvrability
and is also multifunctional because of its limited length-to-width ratio. With a relatively low
draught when fully loaded, the dredger will be able to manoeuvre easily in shallow waters. This
makes the CONGO RIVER suitable for working in ports as well as for long-distance sand
transportation. With this vessel, DEME expands its fleet of highly competitive ships, which
began with the Pallieter-class and Brabo-class. Fitted with a deep suction dredging installation,
the CONGO RIVER can dredge to depths greater than 100 metres. It also features a one-man
bridge operation.

 www.deme.be/video/congo_river_presentation.html











Images

cong_river_-_raainbowingcongo_river - trailing suction hopper dredgercongo_river_ trailing suction hopper dredgercongo_river_-rainbowing -  trailing suction hopper dredgercongo_river_dredge_pumpsCongo River

Videos

See video

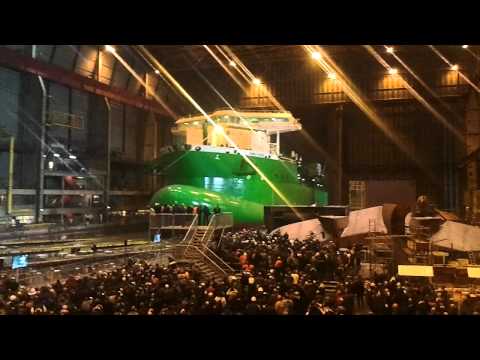

launching 2011
See video
launching 12-3-2011
See video
Christening
See video
taking in trailingpipe
See video
varend
See video

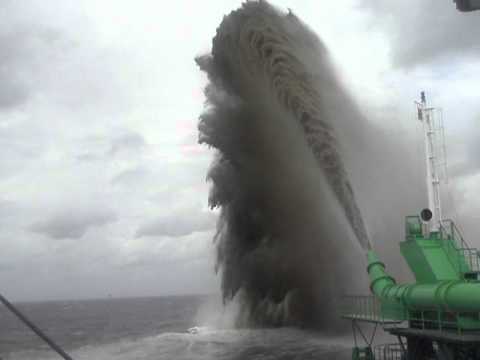

rainbowing

Technical files and datasheets

No files available
