Charlemagne

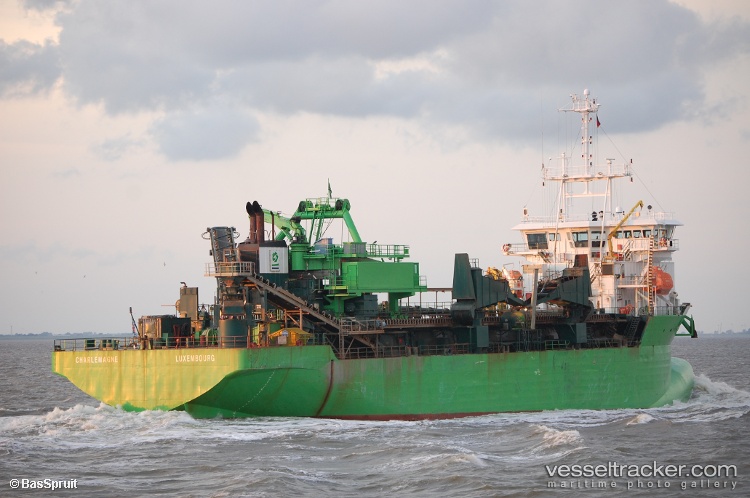

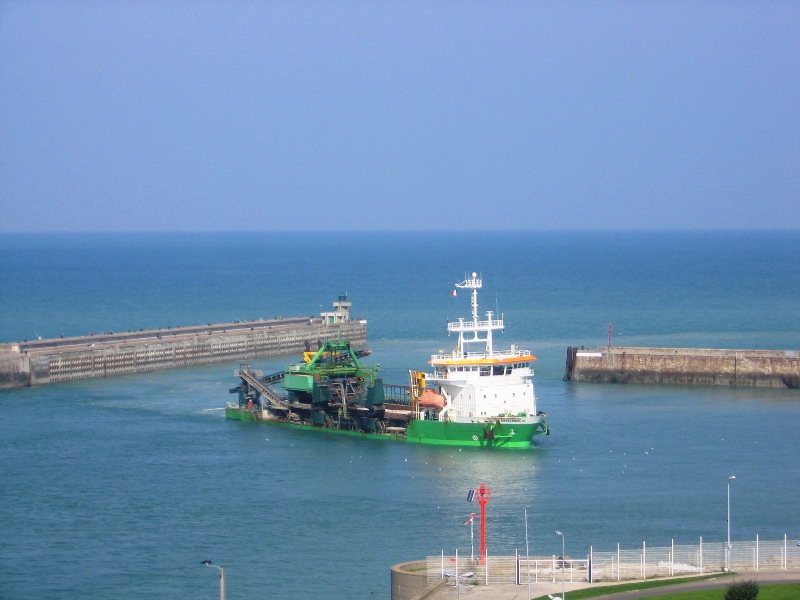

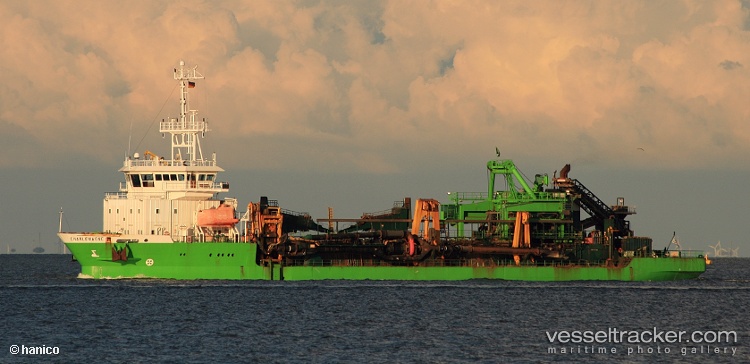

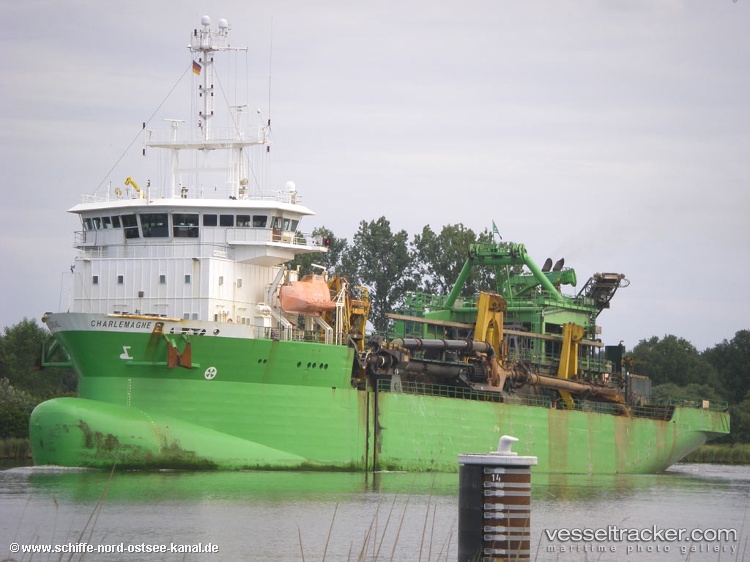

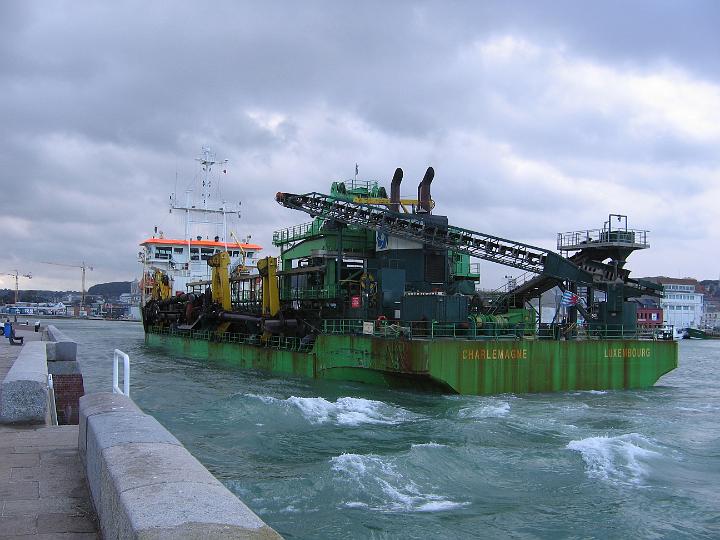

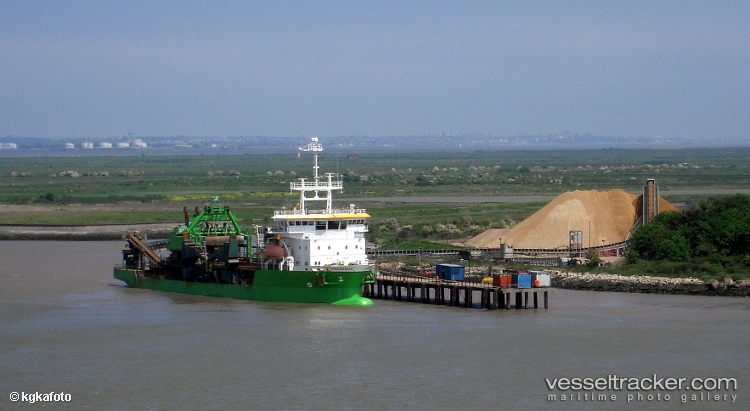

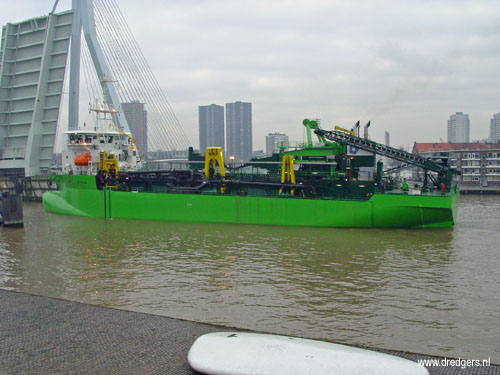

Charlemagne - trailing suction hopper dredger

General properties

IMO number:
9243289
253112000
Callsign:
LXDV
Vessel type:
TSHD
Flag:
LU
Owner:
DEME Building Materials NV (DBM)
Manager:
DEME - Dredging Environmental and Marine Engineering N.V.
Built in:
2002
Shipyard:
IHC Dredgers ( IHC Smit Kinderdijk )

Physical properties

Length (OA):
101.22 m
Length (BP):
92.5 m
Width:
20.8 m
Depth:
9.2 m
Draft (loaded):
8.52 m
Deadweight:
10650 tons
Number of engines:
2
Engine specs:
Wärtsilä - 6L32 - Str - 6 cyl - - rpm
Speed (loaded):
13.4 knts
Total power:
5883 kW

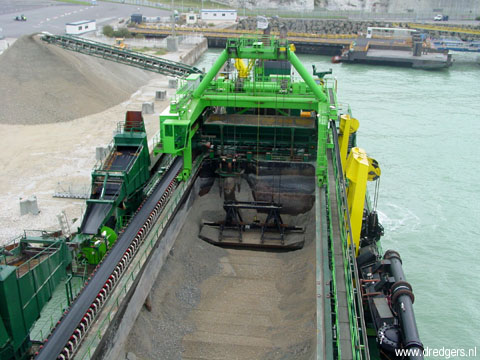

Hopper volume:
5000 m³
Dredging depth:
40 m
Dredging depth (extended):
60 m
Suction pipe diameter:
0.7 m
Number of dredging pipes:
1

About this page

Status:
Active

Last Updated

2 years 23 weeks ago

Images

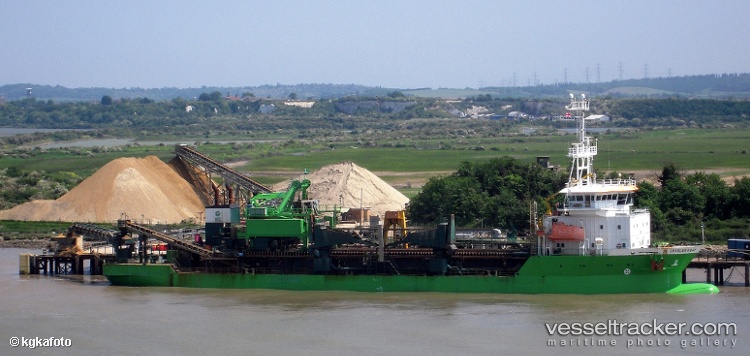

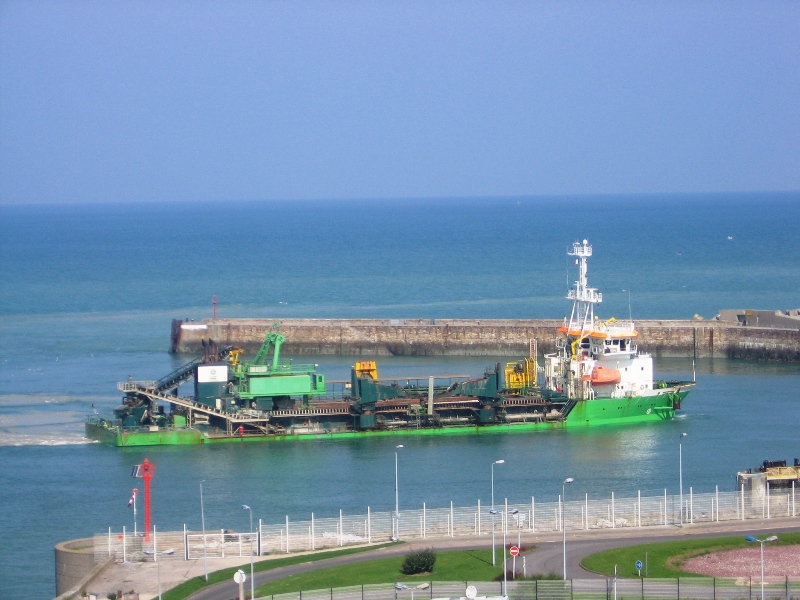

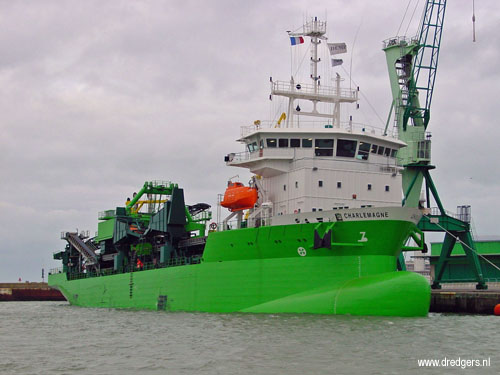

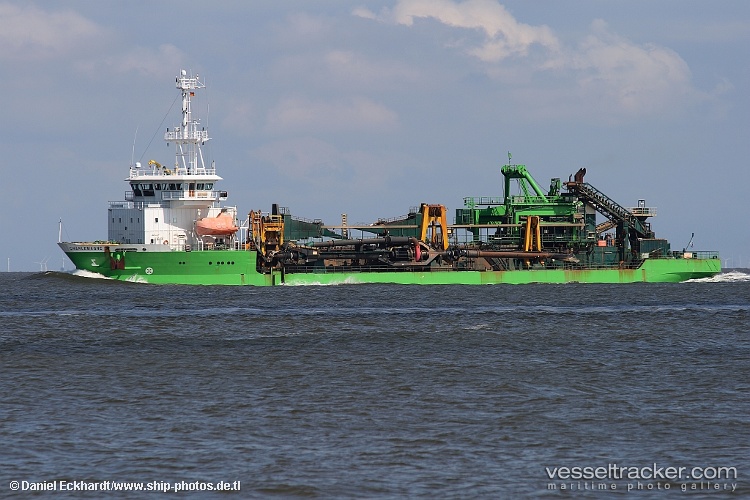

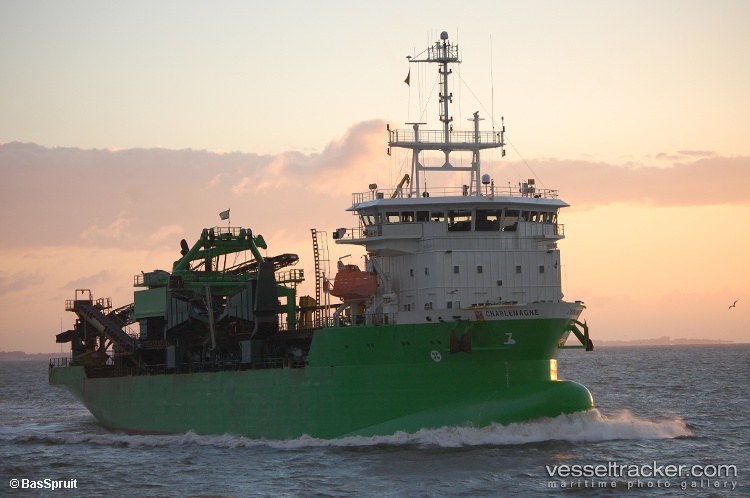

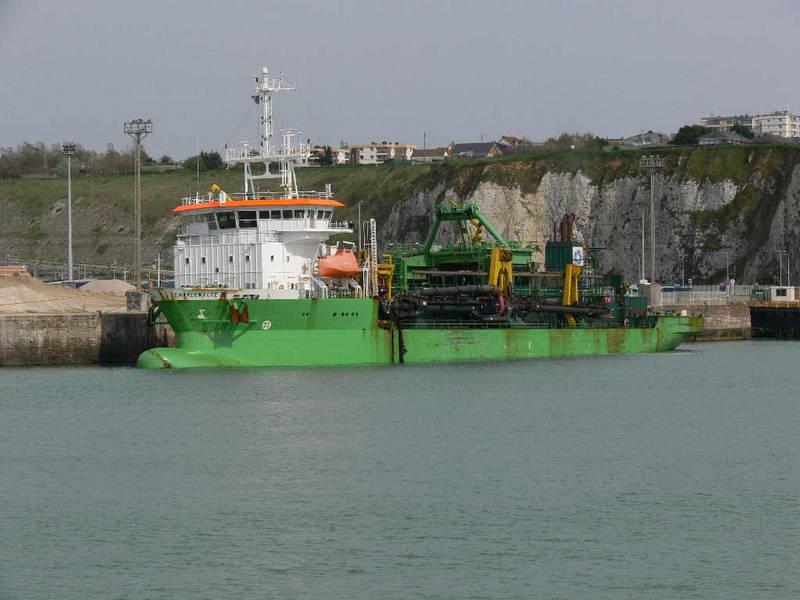

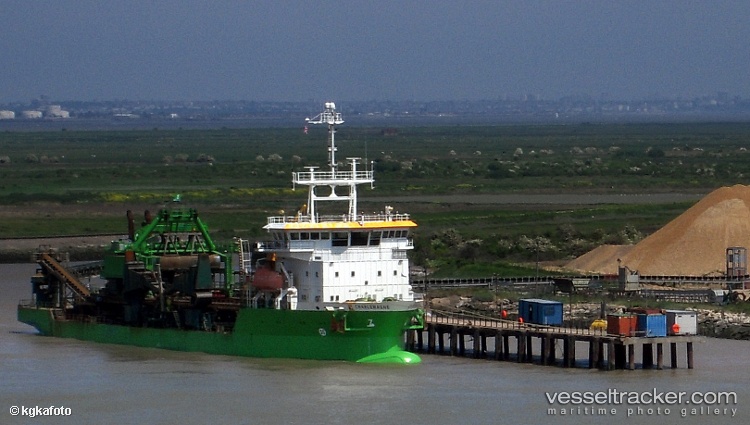

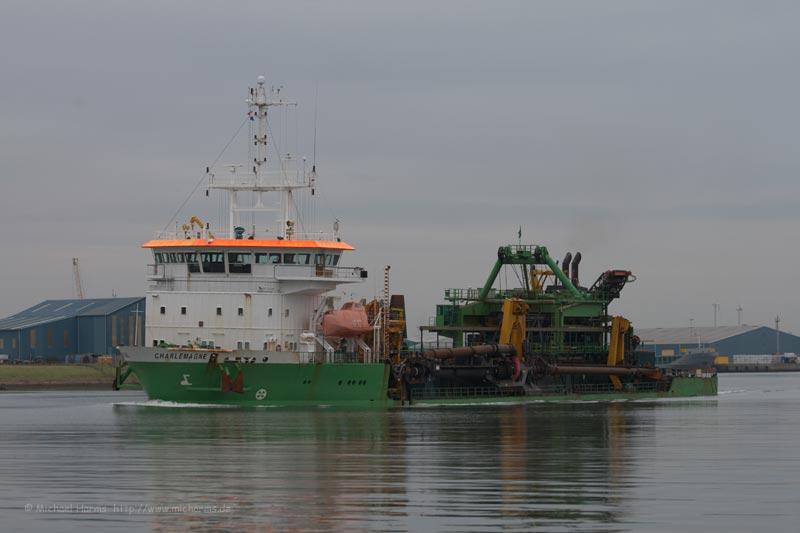

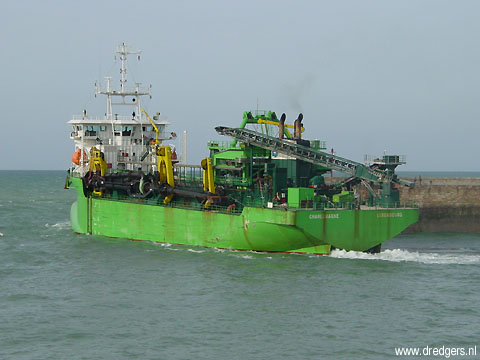

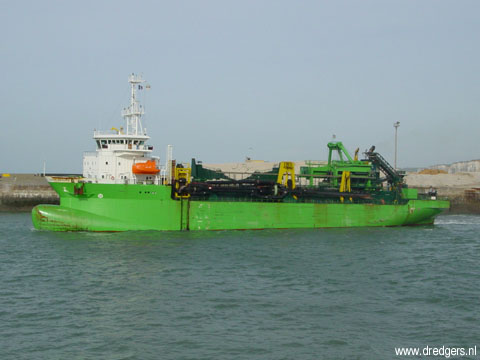

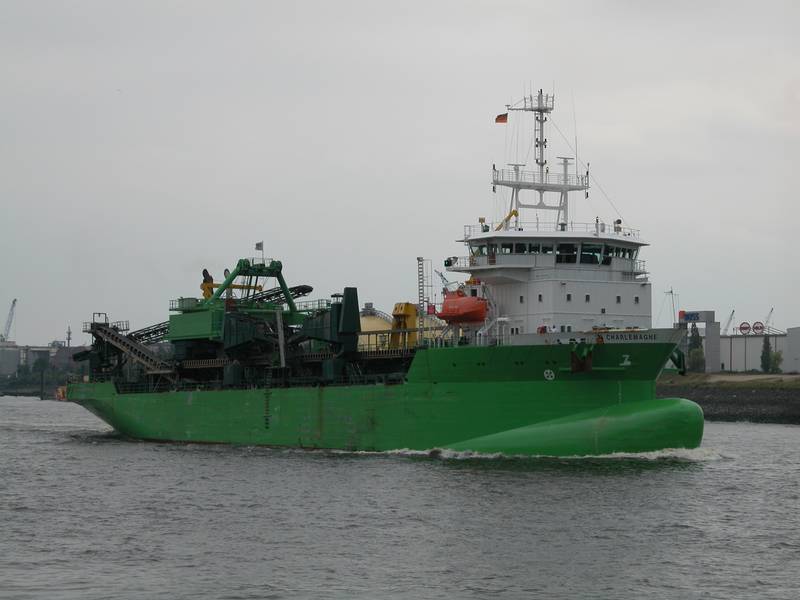

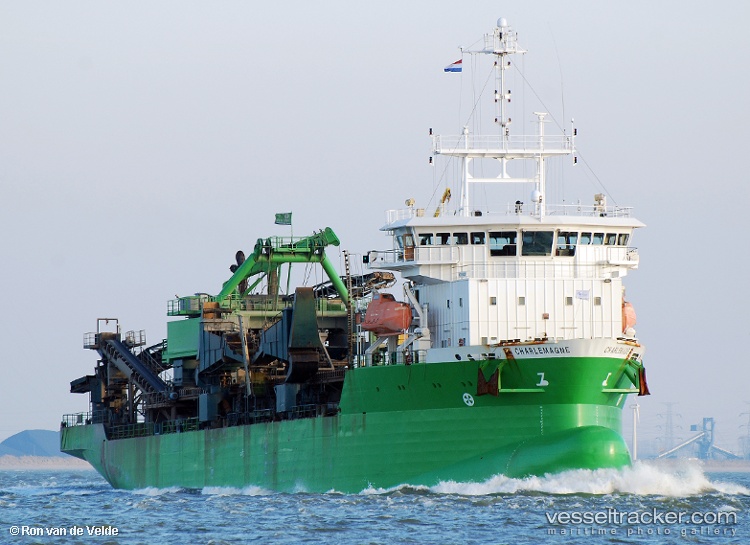

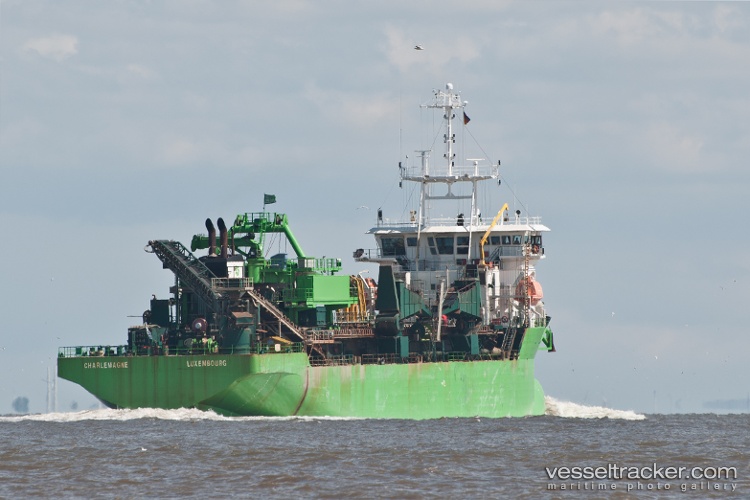

Charlemagne-532529Charlemagne-138003charlemagne-1004572charlemagnecharlemagneCharlemagne-47628CharlemagneCharlemagne-544269charlemagne-590816charlemagne-621396charlemagne-621400charlemagne-903677charlemagne-704690charlemagne-788481charlemagne-788817charlemagne-792050charlemagne-792062charlemagne-792064charlemagne-594569Charlemagne_195Charlemagne_198Charlemagne_201CharlemagneCharlemagne_204Charlemagnecharlemagne04_05_20071Charlemagne_2332Charlemagne_2338charlemagnecharlemagne1Charlemagne_2341Charlemagne_2350Charlemagne_2353Charlemagne_2354Charlemagne_LSCharlemagne-574336Charlemagne-574338CHARLEMAGNE09charlemagnecharlemagne1charlemagne2charlemagnecharlemagnecharlemagne-625889charlemagne_-_vlissingen

Videos

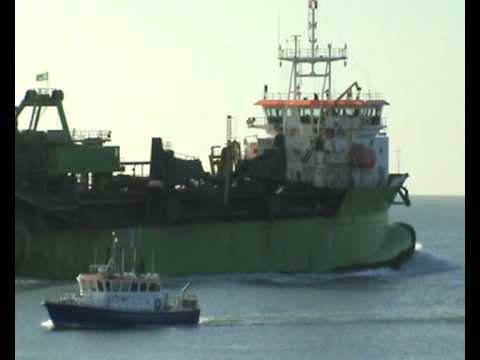

See video
Le Havre 2007
See video
presentation

Technical files and datasheets

Files are available for CEDA members.
