Charles Darwin

Charles Darwin - trailing suction hopper dredger

General properties

IMO number:
9528079
253422000
Callsign:
LXWN
Vessel type:
TSHD
Flag:
ES
Manager:
Jan De Nul Group
Built in:
2011
Yard number:
B335

Physical properties

Length (OA):
183.2 m
Length (BP):
161.5 m
Width:
40 m
Draft (loaded):
13 m
Speed (loaded):
16 knts
Total power:
23600 kW
Hopper volume:
30500 m³
Dredging depth:
58 m
Dredging depth (extended):
93.5 m
Suction pipe diameter:
1.2 m
Number of dredging pipes:
2

Page review

Status:
Active

Last Updated

1 year 42 weeks ago

About this equipment

Launching Charles Darwin On June 11th, 2010, twenty three months after placing the order, the trailing suction hopper dredger ‘Charles Darwin’ was launched at the shipyard Construcciones Navales del Norte in Sestao (Spain). The godmother of the ship was Charlotte Putz-De Nul, daughter of Mrs Ghislaine De Nul, sister of Jan Pieter De Nul and Dirk De Nul, Directors of the company.

This new ship has a capacity of 30,500 m³ and with her limited draught of only 12 m and her overall length of 183.3 m, combined with 3 thrusters of 1,350 kW each, the vessel is very suitable to operate in shallow or confined waters. With a relatively low propulsion power of 2 x 10.800 kW, the speed in open sea will still be16 knots. This is the result of an optimized design of the hullform of the vessel and the use of specially designed propeller nozzles.This results in a low fuel consumption and lowered emissions.
When the vessel sails with only 5 m under the keel, the speed will still be 16 knots.

Two suction pipes, equipped with submerged dredge pumps of each 3,400 kW are installed. Double-walled, electrically driven shore discharging dredge pumps with a total power of 15,000 kW will enable discharging the load at a high rate, over long distances.

Delivery is expected by the end of 2010. At the same shipyard, the TSHD 'Leiv Eiriksson‘ was delivered. The 'Leiv Eiriksson‘ is the sister vessel 'Cristóbal Colón', the largest trailing suction hopper dredger in the world.

pump power trailing: 2x 3400 kW - pump power discharging 15000 kW - propulsion power 2 x 1













Images

charles-darwin-697262B335_Charles_Darwincharles-darwin-702836charles-darwin-703471Working at Busan New Port, as seen on June 2, 2015 | Image by V. Toniccd1cd2cd3cd4c1c2charles-darwin-666377

Videos

See video

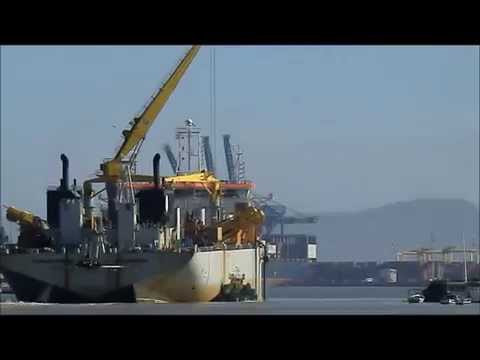

Santa Carina Brasil
