Andromeda V

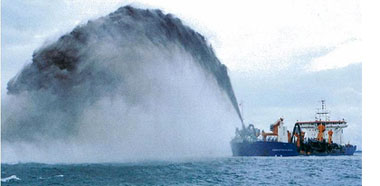

Andromeda V - trailing suction hopper dredger

General properties

IMO number:
9174115
566010000
Callsign:
V9V9256
Vessel type:
TSHD
Flag:
SI
Built in:
1999
Yard number:
973

Physical properties

Length (OA):
166.7 m
Length (BP):
159.27 m
Width:
31 m
Depth:
12.5 m
Draft (loaded):
10.5 m
Number of engines:
2
Engine specs:
Wärtsilä (Stork) - - 4Str - 12 cyl - 46.00 x 58.00 - 500 rpm
Speed (loaded):
16 knts
Total power:
27032 kW
Hopper volume:
20000 m³
Dredging depth:
40 m
Dredging depth (extended):
60 m
Suction pipe diameter:
1.2 m
Number of dredging pipes:
2

Page review

Status:
Active

Last Updated

4 years 6 weeks ago

History

TimeframeEquipmentManagerReview
Timeframe:
1999 - 2011
Equipment:
Review:
--
Timeframe:
2011
Equipment:
Review:
sold and renamed

About this equipment

Builder:IHC Dredgers Year of build:May 1999 Classification: BV/NK Flag:Singapore Gross tonnage:22,049 GT Overall Length:166.7 m Length between p.p.:160.0 m Breadth (mld.):31.0 m Depth (mld.):12.5 m Draught - Dredging Mark 10.5 m Hopper Capacity: 20,000 m² Maximum Loading Capacity:30,000 tons Suction Pipe Diameter: 1,200 mm Dredging Depth: 34/40/60 m Service Speed:16.0 knots Inboard Dredge Pumps:2 x 6,000 kW Submergible Dredge Pumps:2 x 2,200 kW Shore Discharge Pump:12,000 kW Jet Pump:2 x 1,350 kW Main Engines: 2 x 12,600 kW Propulsion: 2 x 9,000 kW with c.p.p. Bow Thrusters: 2 x 850 kW . -------------------------------------------------------------------------------- .

Build by Van der Giessende Noord in order of IHC build.nr. co. 1217
